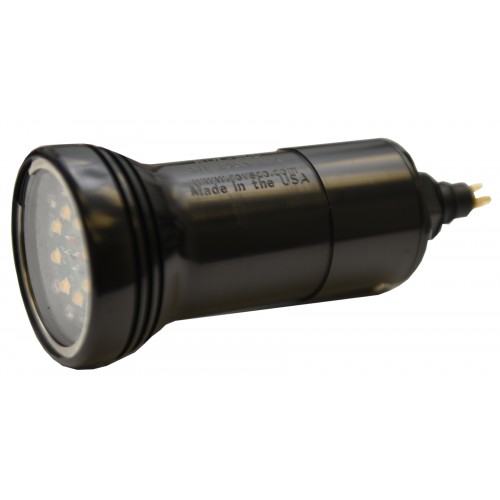

ROVSCO RDL-400-LED 3-Pin LED Light , 24 Volts, Equivalent to 270 Watt Halogen, Fully Dimmable     'PLUG-N-PLAY Replac.. Product #: RDL-400-LED Regular price: $732.60 $732.60 Usually Ships in 1 Week

RDL-400-LED

Brand: ROVSCO
Product Code: RDL-400-LED
Availability: Usually Ships in 1 Week

Price: $732.60  $697.87

- +

3-Pin LED Light , 24 Volts, Equivalent to 270 Watt Halogen, Fully Dimmable

'PLUG-N-PLAY Replacement'
Light Connector:   3-Pin
Mating Connector: RMG-3-FS
Pin 1: +24 Volt DC
Pin 2: (-) Ground Common
Pin 3: 0-24 Volt Dimmer

Light:
LED
Brightness 3800 Lumens
Color Temperature: 3000K

Options:
•  Customer Requested Connector or Pin-Out

Rovsco offers a finest and most Reliable range of underwater LED lights. The RDL-400 LED is a 3-pin  underwater LED light that works at both 24 volts. The housing is made of Hard Anodized Aluminum.

Benefits of LED Lighting:
•  Highly Shock and Vibration Resistant
•  No Fragile Filaments
•  Average Lifetime >50,000 Hours
•  Enormous 'in-service' cost saving


'Rovsco Offers Brighter Lights'

3-Pin Connector:
    XSG-3-BCL
Mating Cable Connector:
   RMG-3-FS

Pin Connections:
     Pin 1: (+) 24 VDC,
     Pin 2: (-) Common
     Pin 3: Dimmer 0-24 VDC

Options:
Other Connectors and Pin Configurations Available on Request

Light:
LED
Brightness: 3800 Lumens
Color Temperature: 3000K

Mechanical:
Housing Material: Hard Anodized Aluminum
Front Glass: Acrylic
Depth Rating: 5000 fsw (1500 meter)
Length: 4.33 inch (110 mm) exc. connector
Diameter: Main Body  1.70 inch (43 mm)
Weight in air: 12 oz.  (0.34 kG)
Weight in Seawater: 4.8 oz  (0.14 kG)

Electrical:
Voltage    24 VDC
Power     30 Watts,  1.28 amps @ 24 VDC

Application:
•   Commercial Divers
•   ROVs
