ROVSCO ROVL-600-4KM Rovsco ROVL-600-4KM, 3-Pin LED Light for ROVs, 24 Volts, Equivalent to 540 Watt Halogen, Fully Dimma.. Product #: ROVL-600-4KM Regular price: $1,550.00 $1,550.00 Usually Ships in 1 Week

ROVL-600-4KM

Brand: ROVSCO
Product Code: ROVL-600-4KM
Availability: Usually Ships in 1 Week

Price: $1,550.00

- +

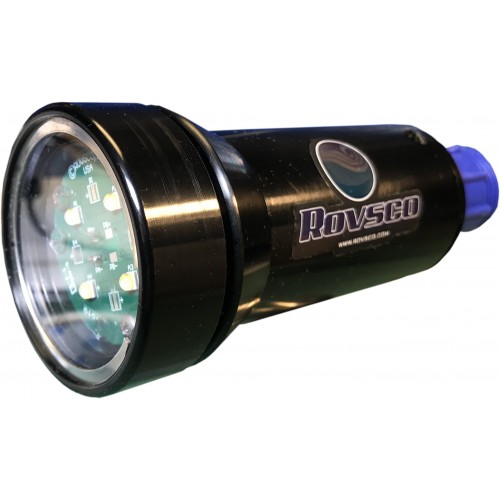

Rovsco ROVL-600-4KM, 3-Pin LED Light , 24 Volts, Equivalent to 540 Watt Halogen, Fully Dimmable, 3000K, Titanium Housing

Housing: 6AL4V Titanium

Light Connector: MCBH3M
Mating Connector: LPIL3f
Pin 1: +24 Volt DC
Pin 2: (-) Ground Common
Pin 3: 0-24 Volt Dimmer

Light:
LED
Brightness 7600 Lumens (540 Watt Halogen Equivalent)
Color Temperature: 3000K

Options:

  • Customer Requested Connector or Pin-Out

Rovsco offers finest and most Reliable range of underwater LED lights. The ROVL-600-4KM LED is a 3-pin underwater LED light that works at 24 volts. The housing is made of 6AL4V Titanium.

Benefits of LED Lighting:

  • Highly Shock and Vibration Resistant
  • No Fragile Filaments
  • Average Lifetime >50,000 Hours
  • Enormous 'in-service' cost saving

'Rovsco Offers Brighter Lights'

Connector

  • Standard Connector: 3-pin MCBH3M
  • Mating Connector: MCIL3F/MCDLSF

Mechanical

  • Depth Rating: 4000 meter
  • Housing Material: 6AL4V Titanium
  • Front Port: Acrylic
  • Length: 4.80 inch (122 mm) excluding connector
  • Diameter: Main Body 1.82 inch (46 mm), Front 2.45 inch (62 mm)
  • Typical Beam Angle: 100 Degrees
  • Weight in air: 17 oz. (0.50 kG)
  • Weight in Seawater: 5.1 oz (0.15 kG)

Electrical

  • Voltage 24 VDC
  • Power 2.56 amps at 24 VDC
  • Light
  • Lumens: 7600
  • 3000K
  • Fully Dimmable
