ROVSCO RDC-330/P Rovsco RDC-330/P Fixed Focus High Definition 1080-P Color Camera, Black Delrin Housing, Wide Angle, .. Product #: RDC-330/P Regular price: $1,084.05 $1,084.05 Usually Ships in 1 Week

RDC-330/P

Brand: ROVSCO
Product Code: RDC-330/P
Availability: Usually Ships in 1 Week

Price: $1,084.05

- +

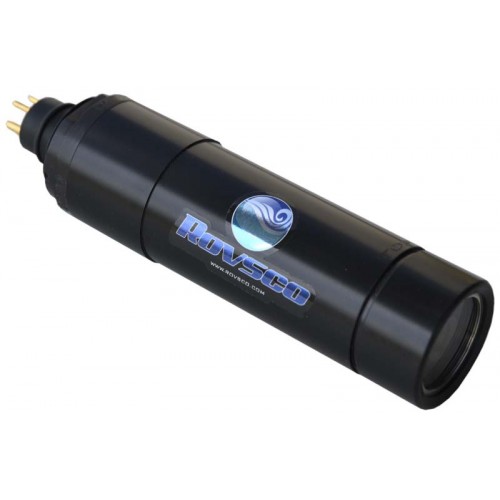

Rovsco RDC-330/P Fixed Focus High Definition 1080-P, Color Camera, Black Delrin Housing, Wide Angle, NTSC
Size: 1.62 in (41 mm) dia., 5.0 inch length (127 mm)

Standard Front Port:  Scratch Proof Sapphire


5-Pin XSK connector, with the same pin-out & connections as commonly used by the commercial diving industry.
You can use our cameras in your present equipment without any modification.

Connector Interface:
Connector                  5-Pin XSK Connector
Mating Connector     RMK-5-FS
Locking Sleeve           K-FLS-D
Connections               Pin 1: Video
                                   Pin 2:  Ground (Common)
                                   Pin 3: +12 - 24 VDC
"PLUG-N-PLAY Replacement'- same 5-Pin connector and pin connections. Works with your present equipment.

'Rovsco offers finest and the most Reliable range of Diver Video Equipment.'

Options:
Housing                  Stainless Steel
Connector               Customer Requested Connector

Connector Interface:
Connector                  5-Pin XSK Connector
Mating Connector     RMK-5-FS
Locking Sleeve           K-FLS-D
Connections               Pin 1: Video
                                   Pin 2:  Ground (Common)
                                   Pin 3: +12 - 24 VDC
"PLUG-N-PLAY Replacement'- same 5-Pin connector and pin connections. Works with your present equipment.

Specification:

Mechanical
Diameter: 1.62 inch (41 mm)
Length: 5.0 inch (127 mm)
Housing: Black Delrin
Front View Port: Sapphire
Weight in air: 9.2 oz (0.28 kG)
Weight in seawater: 3.0 oz (.085 kG)
Depth Rating: 2000 meter (6,560 ft)

Electrical & Optical

Image Sensor:  1/2.7 in. 2 MP CMOS (1933 H x 1088 V) Pixels
Sensitivity:   1.3 Lux at f2.0
Resolution:   1933 x 1088 Pixels
Focus: Fixed Focus, 4 inch to infinity
Lens: 3.6 mm, F2.0, E-Iris
FOV underwater: 72 degrees
