Cable Cutters

Hydraulic Cable Cutters

•   Hard Line Cable Cutter , 1.125 inch (28.5 mm) size
     Hydraulic Power Required: 3000 Psi, 3-4 GPM
     Hydraulic Ports: #6 SAE
     Material: Stainless Steel, Bronze, Tool Steel, Aluminum
     Size: 12 x 5.5 x 3 inch
     Weight in air: 16.5 lbs (7.48 kG)
     Weight in seawater: 12 lbs. (5.44 kG)

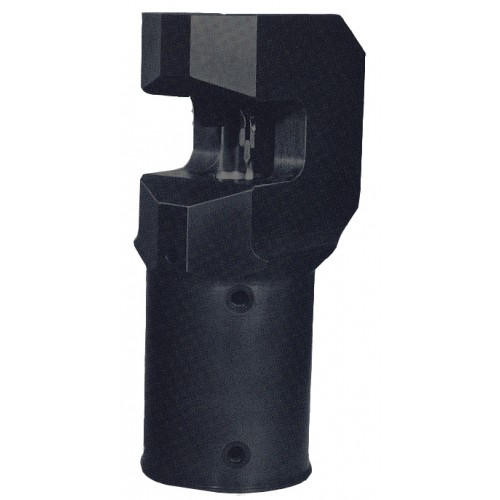

•   Hard Line Cable Cutter , 1.50 inch (38 mm) size
     Hydraulic Power Required: 3000 Psi, 4-6 GPM
     Hydraulic Ports: #6 SAE
     Material: Stainless Steel, Bronze, Tool Steel, Aluminum
     Size: 16.19 x 8.0 x 5 inch
     Weight in air: 52 lbs (23.6 kG)
     Weight in seawater: 32 lbs. (14.5 kG)

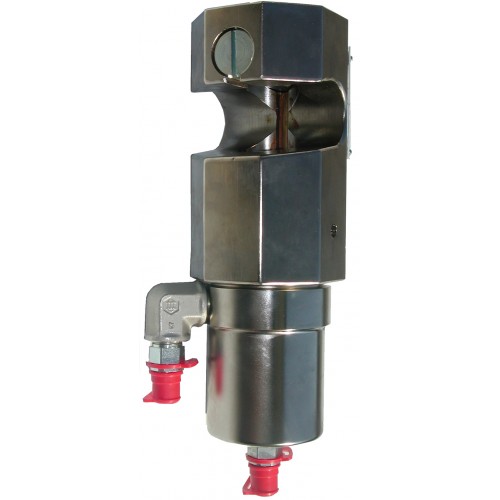

•   Hard Line Cable Cutter , 4.5 inch (115 mm) size
     Hydraulic Power Required:
                              Main Ram: 10,000 Psi
                              Auxiliary Cylinder (To retract anvil): 2,750 Psi
     Hydraulic Ports:
                              Main Ram: 3/8" NPT
                              Auxiliary Cylinder: 1/4" NPT
     Material: Stainless Steel, Tool Steel
     Size:  27.48" x 9.96" x 13.5"
     Weight in air: 276 lbs (125 kG)
