ROVSCO SEATV/D/E Rovsco SEATV/D Offshore Video System (PAL) Application: •    Drill-Rig Video Monitoring •    Stinge.. Product #: SEATV/D/E Usually Ships in 1 Week

SEATV/D/E

Brand: ROVSCO
Product Code: SEATV/D/E
Availability: Usually Ships in 1 Week
Call for Price: 1-281-858-6333

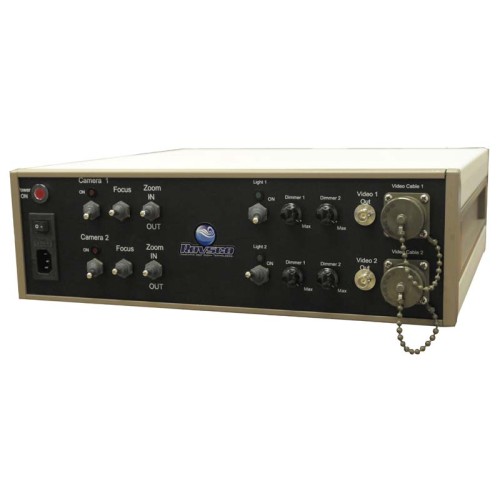

Rovsco SEATV/D™ Offshore Video System (PAL)
Offshore Subsea Monitoring System.

 110-240 VAC

Included with the System:
(2) Rovsco RZC Zoom Color Camera (PAL)
(2) ROVL-450 LED Light
(2) 100m (330 ft.) video cable
(2) Pan/Tilt Units
(1) Rack-mountable or Desktop Super SeaTV™  unit, Power Supply, 1 TB HDD, Thumb Drive (USB) for backup.


Options:
   Explosion Proof System
•   2 TB Hard Drive

●   Rovsco RZC (PAL) Zoom Color Camera
      •    Mechanical
       □
 Housing                               Hard Anodized Aluminum
       □
 Front Optical Port                Acrylic (Seawater Corrected)
       □
 Size                                      Length: 8.1 inch (Excluding connector)
                                                        Diameter: Main Body 3.3 inch (84 mm)
       □
  Weight in air                        5.64 lbs.(2.56kG)
       □
Weight in Seawater             1.65 lbs. (0.75 kG)
      •    Electronics

 □  Image Device                       1.4" Exview HAD CCD Sensor (768 H x 494 V)
       □  Resolution                            470 TV Lines (minimum) NTSC
       □  Sensitivity                             1 Lux
       □  Iris                                         Auto
       □  Signal to Noise Ratio            >50 db
       □  Video Output                         1 V P-P
       □  Power                                    12-30 VDC, 300 ma
       □  Standard Connector               Burton 5506-1508*
            * Other Connectors and Pin-Outs available on Request
      •    Optical
       □  Optical Zoom                         18:1 (4.1 mm - 73.8 mm focal length)
       □  Digital Zoom                           4X
       □  FOV                                         55° Diagonal (in seawater)

●   ROVL-450 LED Light
      •  Connector
       □   Standard Connector: 3-pin  MCBH3M
       □   Mating Connector:  MCIL3F/MCDLSF

      •   Mechanical
       □   Housing Material: Hard Anodized Aluminum
       □   Front Port: Acrylic
       □   Length: 4.80 inch (122 mm) excluding connector
       □   Diameter: Main Body  1.82 inch (46 mm), Front 2.45 inch (62 mm)
       □   Typical Beam Angle: 100 Degrees
       □   Weight in air: 17 oz.  (0.50 kG)
       □   Weight in Seawater: 5.1 oz  (0.15 kG)

      •   Electrical
       □   Voltage   24 VDC
       □   Power     2.56 amps at 24 VDC

      •   Light

       □   Lumens: 7600
       □   3000K
       □   Fully Dimmable
