ROVSCO RDC-400/SS/E Rovsco RDC-400/SS/E (PAL),  Fixed Focus Color Camera, Stainless Steel Housing, Wide Angle,  Compact .. Product #: RDC-400/SS/E Regular price: $1,039.50 $1,039.50 Usually Ships in 1 Week

RDC-400/SS/E

Brand: ROVSCO
Product Code: RDC-400/SS/E
Availability: Usually Ships in 1 Week

Price: $1,039.50

- +

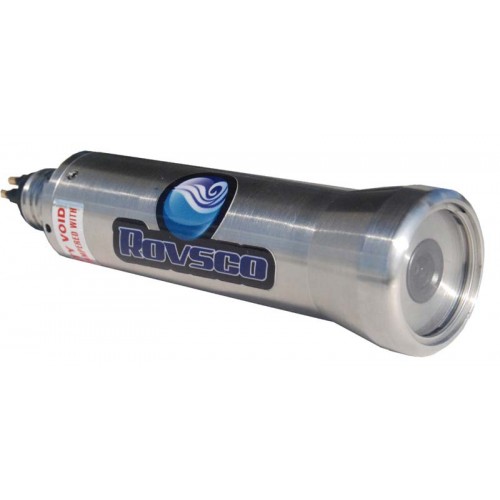

Rovsco RDC-400/SS/E (PAL), Fixed Focus Color Camera, Stainless Steel Housing, Wide Angle, Compact Size

The Rovsco Line of Underwater Video systems offer a complete range of highest quality underwater video cameras. They are built to withstand the harsh undersea environment and provide a flawless service for many years.
The Rovsco RDC-400/P is based on latest Sony CCD Technology and is packaged in Black Delrin housing with double O-Ring seals.

Standard Connector       4-Pin MCBH4M
Mating Connector           LPIL4F
Locking Sleeve                  MCDLSF
Main Body Diameter: 1.30 inch (33 mm)
Front Diameter: 1.50 inch (38 mm)
Length: 5.0 inch (126 mm)
Housing: 316 Stainless Steel
Standard View Port:  Scratch Proof Sapphire

Options:
•   Customer Requested Connector

Connector Interface:
Standard Connector  4-Pin MCBH4M
Mating Connector     LPIL4F
Locking Sleeve           MCDLSF


Specification:

Mechanical
Main Body Diameter: 1.30 inch (33 mm)
Front Diameter: 1.50 inch (38 mm)
Length: 5.0 inch (126 mm)
Housing: 316 Stainless Steel
Front View Port: Sapphire
Weight in air: 5.3 oz (0.15 kG)
Weight in seawater: 1.76 oz (.05 kG)
Depth Rating: 2000 meter (6,560 ft)

Electrical & Optical

Image Sensor:  1/3"Sony CCD
Sensitivity:   .001 Lux at f1.4
Resolution:   >750 TV Lines
Pixels: 1020 (H) x 596 (V)
Focus: Fixed Focus, 4 inch to infinity
Lens: 3.6 mm, F1.2, E-Iris
FOV underwater: 72 degrees
