ACP-2011

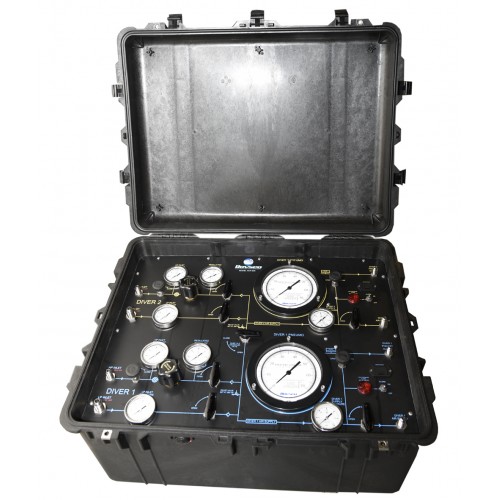

Rovsco ACP™-2011, HP/LP Air Control Unit for 2 Divers in a Portable Pelican Case with heavy duty wheels
'Take it where the job is' ™
100% IMCA Compliant
Main Features:
• Stainless Steel Tubing
• IMCA Compliant HP-LP air controls
• Air Regulators
• Preset Air Supply Relief Valve
• Cross-over Valve Diver 1 - Diver 2
• Low Air Pressure Alarm for each diver
• Air Flow Indicators
• O2 Analyzer Connection
• Depth Gauges 6 inch (152 mm) diameter
• Pressure Gauges are 2.25 inch (157 mm) diameter.
Option:
• Customer Requested Inlet/Outlet Fittings
● AIR CONTROLS
□ Pressure Gauges
LP Range 0-600 Psi
Diameter 64 mm (2.50 inch)
HP Range 0-6000 Psi
Diameter 64 mm (2.50 inch)
□ Regulators: 0-400 Psi
□ Relief Valve for air supply to Diver
□ Depth Gauges
Range 0-70 Meter (0-230 Ft)
Diameter 114 mm (4.50 inch)
□ HP Air Inlet: #6 JIC (Male)
□ LP Air Inlet: #8 JIC (Male)
□ LP Air to Diver: #6 JIC (Male)
□ Pneumo: #4 JIC (Male) or O2 Fitting
● Mechanical
□ Enclosure Weather Resistant Pelican Case with Telescopic
Handle and Heavy Duty Roller Wheels
□ Case Size: 31.3 inch (795 mm) x 24.2 inch (615 mm) x
17.5 inch (445 mm)
● Options
□ Customer Requested Inlet/Outlet Fittings
