AIO-2021
Rovsco AIO-2021 is a 2-Diver portable Total Dive Control System with HP/LP Air and complete Video system; all-in-one portable Pelican Case.
100% IMCA Compliant
● Connector for Umbilical: MS3102-18-08S with the same pin-out & connections as the Leading Brand of Underwater Video Systems and commonly used by the commercial diving industry. You can use your present or our video cables, cameras and lights without any modification.
'AIO-2021 Video System is a 'PLUG-N-PLAY' for your present video umbilicals, 5-pin video cameras, and 3-pin LED Lights.'

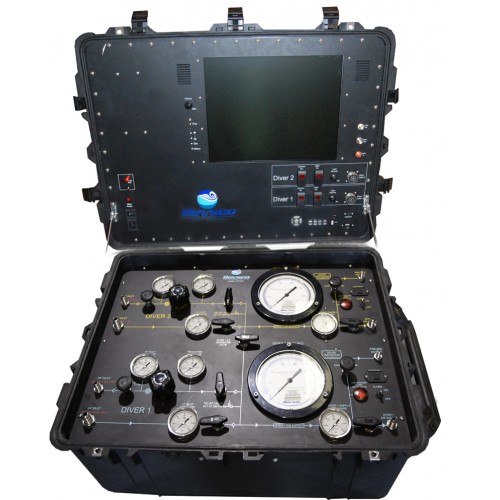

AIO-2021 is a combination of HP/LP air control Unit (IMCA Compliant) and complete video System for 2 Divers; both beautifully packaged in one Portable Pelican Case. The Pelican Case is equipped with heavy duty rolling wheels and Telescopic Handle to enable portability from site to site.
100% IMCA Compliant
Power: 110-240 VAC or 24 Volt DC (2x12 Volt Car Batteries)
'Rovsco offers finest and most Reliable range of Dive Air Control Units and Video Systems.'
AIO-2021 System includes:
(2) RDC-325/P, Fixed Focus Color Camera
(2) RDL-401 LED Light, 3000 Lumens (Eq. to 225 Watt Halogen), Fully dimmable
(2) RDH-60, Bracket & Handle
(2) RVC-2303-150M, 150 Meter (500 Ft.) Video Cable with Connectors
(2) Y-Cables
(1) AIOCON-2021 Console: HP/LP Air Controller (IMCA Compliant) C/W Air Pressure Regulators, Cross-Over Valve, Pneumo Gauges, Low Pressure Alarms; Complete Video System with 17 inch 1080-P 16:9 Color Minitor, Video Text Writer, Time/Date on Video Display, Back-Up on USB, Power Supply, Variable Light Control, HDD Recorder, 1 TB Hard Drive. All Beautifully Packaged in a Portable Pelican Case. 110-240 VAC, or 24 Volt DC (2x12 Volt Car Batteries)
(1) Grounding Cable
(1) User Manual
AIOCON-2021 Air Panel Main Features:
• Full Featured IMCA Compliant
• Cross-over Valve Diver 1 -Diver 2
• Individual Low Air Pressure Alarm for Diver 1 and Diver 2
• Depth Gauges 6 inch (152 mm) diameter
• Pressure Gauges 2.25 inch (157 mm) diameter.
AIOCON-2021 Video Panel Main Features:
• Power: 110-240 VAC, or 24 Volt DC (2x12 Volt Car Batteries)
• 17 inch Sun-Readable High Definition 2000 NIT Color monitor
• 1 TB Hard Drive
• Time/Date Display
• Video Text Writer
Options:
• RDC-325/SS Stainless Steel Cameras
• RDC-400/P Wide Angle Color Camera
• High Intensity LED Light RDL-450 (5850 Lumens, eq. to 440 Watt Halogen)
• 2 TB HDD Hard Drive
• Customer Requested Cable Lengths
• Customer Requested Air Fittings
• Model RDC-325/P Fixed Focus Color Camera □ Mechanical ▪ Diameter: 1.62 inch (41 mm) ▪ Length: 5 inch (127 mm) excluding connector ▪ Housing Material: Black Delrin ▪ Front Port: Sapphire ▪ Depth Rating: 2000 Meter (6,560 ft) ▪ Weight in Seawater: 2.4 oz. (0.068 kG) □ Electrical ▪ Voltage: 12-18 Volt DC ▪ Power: 107 ma @ 12 Volt DC □ Connector ▪ Standard Connector: XSK-5-BCL ▪ Mate for Standard Connector: RMK-5-FS ▪ Standard Pin Out: Pin 1: Video Pin 2: (-) Ground (Common) Pin 3: Power (+) 12-18 Volt DC □ Camera Video/Optical Properties ▪ Image Sensor: 1/3 in. Sony DSP CCD ▪ Sensitivity: .001 lux @ f1.4 ▪ Resolution: 750 TV Lines ▪ Video Out: 1.2 V p-p ▪ Lens: 3.6 mm, F1.2, Electronic Auto Iris ▪ Focus: Fixed 4 in. to infinity ▪ Format: NTSC ▪ Horizontal FOV: 72 degrees (in Seawater) • Model RDL-401 LED Light, 3000 Lumens (Eq. to 225 Watt Halogen), Fully Dimmable □ Connector ▪ Standard Connector: 3 Pin XSG-3-BCL ▪ Mate to Standard Connector: RMG-3-FS ▪ Standard Pin Out: Pin 1: Power (+) 24 VDC Pin 2: Power (-) Ground (Common) Pin 3: 0-24 VDC Dimmer □ Mechanical ▪ Weight: 12 oz. (0.34 kG) in air 3.7 oz. (.105 kG) in seawater ▪ Housing Material: Hard Anodized Aluminum ▪ Front Port: Acrylic ▪ Depth Rating: 1000 Meter (3,250 ft) □ Electrical ▪ Voltage: 24 Volt DC ▪ Power Consumed: 1.16 amps @ 24 VDC □ Light Output: >3000 Lumens (Eq. to 200 Watt Halogen) ● Model RVC-2303 Video Cable □ Length: 500 Ft. (150 M) Standard □ Conductors + RG-59 Coax □ Breaking Strength: 1400 Lbs. (635 kG) □ Outer Jacket: Orange Colored Polyurethane ● Model AIOCON-2021 Console ◊ VIDEO □ Panel Connector for Video Cable: 8-Pin MS3102-18-08S □ Video Recorder: 1 TB HDD DVR □ Light Control: Variable Light Intensity Control 0 -100% □ Monitor: 15 inch, HD Color w/Audio, 1080-P Resolution □ Monitor Brightness: Sun-Readable 2000 NIT □ Safety: Low Voltage to Diver □ Connections: All Beautifully Laid-Out for quick access ◊ AIR CONTROLS □ Pressure Gauges LP Range 0-600 Psi Diameter 64 mm (2.50 inch) HP Range 0-6000 Psi Diameter 64 mm (2.50 inch) □ Regulators: 0-400 Psi □ Relief Valve for air supply to Diver □ Depth Gauges Range 0-70 Meter (0-230 Ft) Diameter 114 mm (4.50 inch) □ HP Air Inlet: #6 JIC (Male) □ LP Air Inlet: #8 JIC (Male) □ LP Air to Diver: #6 JIC (Male) □ Pneumo: #4 JIC (Male) or O2 Fitting ◊ Mechanical □ Enclosure Weather Resistant Pelican Case with Telescopic Handle and Heavy Duty Roller Wheels □ Case Size: 31.3 inch (795 mm) x 24.2 inch (615 mm) x 17.5 inch (445 mm) ◊ Electrical □ Power 110-240 VAC, or 24 Volt DC (2x 12 Volt Car Batteries) ● Options: □ Stainless Steel Color Camera RDC-325/SS □ RDC-400/P Wide Angle Color Camera □ High Intensity LED Light RDL-450 (5850 Lumens) □ 2 TB Hard Drive □ Customer Requested Connectors □ Customer Requested Video Cable Length □ Customer Requested Air inlet/outlet Fittings
