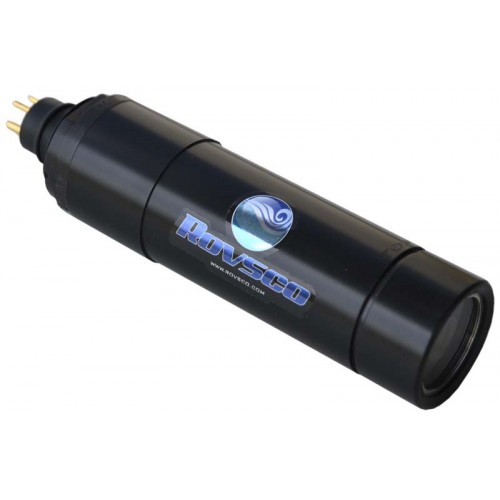

ROVSCO RDC-325/P/E Rovsco RDC-325/P/E (PAL) Fixed Focus Color Camera, Black Delrin Housing, Wide Angle, Compact size, F.. Product #: RDC-325/P/E Usually Ships in 1 Week

RDC-325/P/E

Brand: ROVSCO
Product Code: RDC-325/P/E
Availability: Usually Ships in 1 Week

Rovsco RDC-325/P/E (PAL) Fixed Focus Color Camera, Black Delrin Housing, Wide Angle, NTSC
Size: 1.62 in (41 mm) dia., 5.0 inch length (127 mm)

Standard:  Scratch Proof Front Sapphire Port


Connector Interface:
Connector                  5-Pin XSK Connector
Mating Connector     RMK-5-FS
Locking Sleeve           K-FLS-D
Connections               Pin 1: Video
                                   Pin 2:  Ground (Common)
                                   Pin 3: +12 - 24 VDC
"PLUG-N-PLAY Replacement'- same 5-Pin connector and pin connections. Works with your present equipment.

'Rovsco offers finest and the most Reliable range of Diver Video Equipment.'

RDC-325/P/E Fixed Focus Color Camera for Divers, Light Weight Black Delrin Housing, Wide Angle, Scratch Proof Sapphire Lens, PAL Video Format

Connector Interface:
Connector                  5-Pin XSK Connector
Mating Connector     RMK-5-FS
Locking Sleeve           K-FLS-D
Connections               Pin 1: Video
                                   Pin 2:  Ground (Common)
                                   Pin 3: +12 - 24 VDC
"PLUG-N-PLAY Replacement'- same 5-Pin connector and pin connections. Works with your present equipment.

Specification:

Mechanical
Diameter: 1.62 inch (41 mm)
Length: 5.0 inch (127 mm)
Housing: Black Delrin
Front View Port: Sapphire
Weight in air: 9 oz (0.26 kG)
Weight in seawater: 2.4 oz (.068 kG)
Depth Rating: 2000 meter (6,560 ft)

Electrical & Optical

Image Sensor:  1/3"Sony CCD
Sensitivity:   .001 Lux at f1.4
Resolution:   >750 TV Lines
Pixels: 1020 (H) x 596 (V)
Focus: Fixed Focus, 4 inch to infinity
Lens: 3.6 mm, F1.2, E-Iris
FOV underwater: 72 degrees
