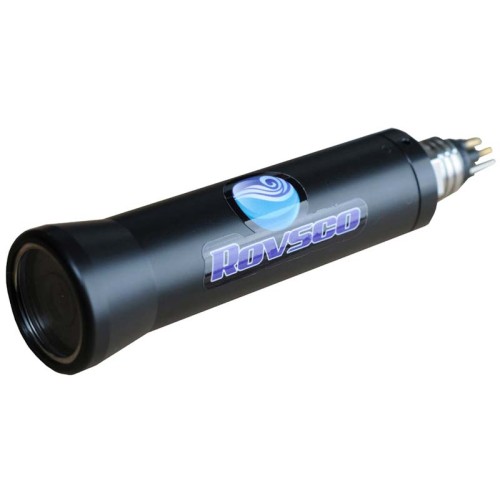

Rovsco RDC-425 SD/P, Fixed Focus Color Camera, Black Delrin Housing, Wide Angle, Compact Size

The Rovsco Line of Underwater Video systems offer a complete range of highest quality underwater video cameras. They are built to withstand the harsh undersea environment and provide a flawless service for many years.
The Rovsco RDC-425 SD/P is based on latest Sony Super HAD CCD Technology and is packaged in Black Delrin housing with double O-Ring seals.

Standard Connector 4-Pin MCBH4M

Mating Connector     LPIL4F
Locking Sleeve           MCDLSF
Main Body Diameter: 1.25 (32 mm)
Front Diameter: 1.50 inch (38 mm)
Length: 5.82 inch (148 mm)
Housing: Black Delrin
Standard View Port:  Scratch resistant lens

FOV in Water 105 degrees

Options:
•   Stainless Steel Housing
•   Customer Requested Connector

Connector Interface:
Standard Connector  4-Pin MCBH4M
Mating Connector     LPIL4F
Locking Sleeve           MCDLSF
Mechanical
Main Body Diameter: 1.25 inch (32 mm)
Front Diameter: 1.50 inch (38 mm)
Length: 5.82 inch (148 mm)
Housing: Black Delrin
Front View Port: Scratch resistant lens
Weight in air: 9 oz (0.26 kG)
Depth Rating: 2000 meter (6,560 ft)

Electrical & Optical
Image Sensor:  1/3" 960H Sony Super HAD CCD
Sensitivity:   .001 Lux at f1.4
Resolution:   >850 TV Lines
Pixels: 1020 (H) x 596 (V)
Focus: Fixed Focus, 4 inch to infinity
Lens: 3.6 mm, F1.2, E-Iris
FOV underwater: 105 degrees

Options:
•   Stainless Steel Housing
•   Customer Requested Connector
