Available as 2 diver or 3 diver

RVS-3510 HD System/XBR Light

(1) RDC-325 *We do have options to switch to HD camera model RDC-330/P, High Definition 1080-P Color Camera

(1) RDL-401 *we do have options to switch to extremely bright light RDL-XBR700-001 12700 lumens* Specify at time of request*
(1) RDH-60, Bracket & Handle
(1) RVC-2303- 100meter Video Cable with Connectors
(1) RVCON-3500, Console C/W 15 inch High Definition Sun-Readable Color Monitor, 1 TB HDD Recorder, Dimmable Light Control with all Power Supplies. All Beautifully Mounted in a Weather Resistant Pelican Case.
(1) 600 Volt Grounding Cable
(1) User Manual

This can come with the typewriter function so you can write on the video as it is being viewed on unit

If you do want an HD camera then this function will be removed

   •  Model RDC-330/P High Definition 1080-P Color Camera
         □   Mechanical
               ▪  Diameter: 1.62 inch (41 mm)
               ▪  Length: 5 inch (127 mm) excluding connector
               ▪  Housing Material: Black Delrin
               ▪  Front Port: Sapphire
               ▪  Depth Rating: 2000 Meter (6,560 ft)
               ▪  Weight in Seawater: 2.4 oz. (0.068 kG)
         □   Electrical
               ▪  Voltage: 12-18 Volt DC
               ▪  Power: 107 ma @ 12 Volt DC
          □   Connector
               ▪  Standard Connector: XSK-5-BCL
               ▪  Mate for Standard Connector: RMK-5-FS
               ▪  Standard Pin Out:
                                Pin 1: Video
                                Pin 2: (-)  Ground (Common)
                                Pin 3: Power (+) 12-18 Volt DC
          □   Camera Video/Optical Properties
               ▪  Image Sensor: 1/2.7 in. 2 MP CMOS (1933 H x 1088 V Pixels)
               ▪  Sensitivity: 1.3 Lux @ f2.0
               ▪  Resolution: 1080-P
               ▪   Video Out: 1.2 V p-p
               ▪  Lens: 3.6 mm, F2.0, Electronic Auto Iris
               ▪  Focus: Fixed 4 in. to infinity
               ▪  Format: NTSC
               ▪  Horizontal FOV: 72 degrees (in Seawater)
   •  Model RDL-401 LED Light, 3000 Lumens, Fully Dimmable
          □   Connector
               ▪  Standard Connector: 3 Pin XSG-3-BCL
               ▪  Mate to Standard Connector: RMG-3-FS
               ▪  Standard Pin Out:
                                Pin 1:  Power (+)  24 VDC
                                Pin 2:  Power (-)  Ground (Common)
                                Pin 3:  0-24 VDC Dimmer
          □   Mechanical
               ▪  Weight: 12 oz. (0.34 kG) in air
                                 3.7 oz. (.105 kG) in seawater
               ▪  Housing Material: Hard Anodized Aluminum
               ▪  Front Port: Acrylic
               ▪  Depth Rating: 1000 Meter (3,250 ft)
          □   Electrical
               ▪  Voltage: 24 Volt DC
               ▪  Power Consumed: 1.16 amps @ 24 VDC
          □  Light Output: >3000 Lumens (Eq. to 200 Watt Halogen)
   ●   Model RVC-2303 Video Cable
          □  Length: 500 Ft. (150 M) Standard
          □  Conductors + RG-59 Coax
          □  Breaking Strength: 1400 Lbs. (635 kG)
          □  Outer Jacket: Orange Colored Polyurethane

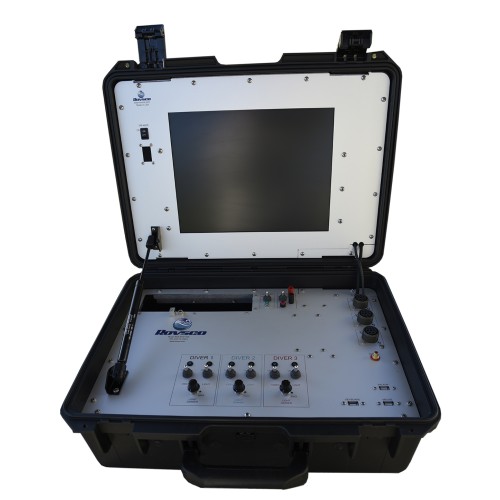

    ●   Model RVCON-3500 High Definition 1080-P Console
          □  Panel Connector for Video Cable: 8-Pin MS3102-18-08S
          □  Video Recorder: High Definition 1 TB HDD Recorder
          □  Light Control: Variable Light Intensity Control 0 -100%
          □  Monitor: 15 inch, High Definition Color w/Audio, 1080-P Resolution
          □  Monitor Brightness: Sun-Readable 2000 NIT
          □  Safety: Low Voltage to Diver
          □  Connections: All Beautifully Laid-Out for quick access
          □  Enclosure: Weather Resistant Pelican Case
          □  Size: W 18.2 in. (462 mm) x H 6.7 in. (170 mm) x D 13.9 in. (353 mm)
          □  Weight: 21 Lbs. (9,53 kG)
          □  Power: 110-240 VAC, 50/60 Hz

    ●   Options:
          □  Stainless Steel Color Camera RDC-325/SS
          □  High Intensity LED Light RDL-550XBR (5850 Lumens)
          □  Video Typewriter
          □  Customer Requested Connectors
          □  DC (Battery) Power Option
          □  Customer Requested Video Cable Length
