RVS-3310/DC
RVS-3310/DC Complete AC/DC Portable Color Video System with LED Light and SD DVR
Power: 110-240 VAC 50/60 Hz, or 24 VDC
Console 8-Pin Connector: MS3102A-18-08S
"PLUG-N-PLAY' - 8-pin cable connector and pin connections. Works with your present video cables & Connectors
Included with the System:
(1) RDC-325/P, Fixed Focus Color Camera
(1) RDL-401, 3000 Lumens, Fully dimmable LED Light
(1) RDH-60, Bracket & Handle
(1) RVC-2303-100M, 100 Meter (330 Ft.) Video Cable with Connectors

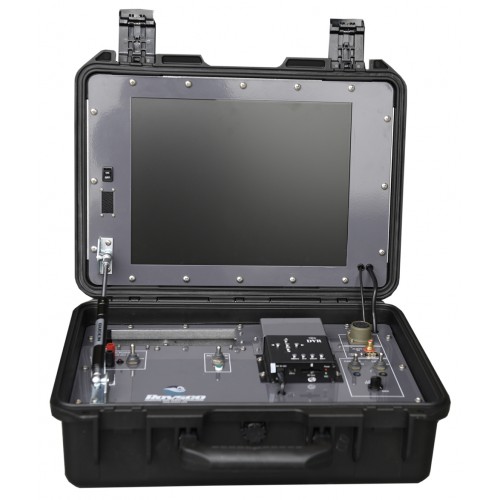

(1) RVCON-3300/DC, Console C/W 15 inch Sun-Readable HD Color Monitor, SD/DVR Recorder, Dimmable Light Control with all Power Supplies. All Beautifully Mounted in a Weather Resistant Pelican Case.
(1) 600 Volt Grounding Cable
(1) User Manual
Features:
• One-Button Recording
• 15 inch Sun-Readable 2000 NIT, 16:9, 1080P HD color Video Monitor
- • Model RDC-325/P Fixed Focus Color Camera
□ Mechanical
▪ Diameter: 1.62 inch (41 mm)
▪ Length: 5 inch (127 mm) excluding connector
▪ Housing Material: Black Delrin
▪ Front Port: Sapphire
▪ Depth Rating: 2000 Meter (6,560 ft)
▪ Weight in Seawater: 2.4 oz. (0.068 kG)
□ Electrical
▪ Voltage: 12-18 Volt DC
▪ Power: 107 ma @ 12 Volt DC
□ Connector
▪ Standard Connector: XSK-5-BCL
▪ Mate for Standard Connector: RMK-5-FS
▪ Standard Pin Out:
Pin 1: Video
Pin 2: (-) Ground (Common)
Pin 3: Power (+) 12-18 Volt DC
□ Camera Video/Optical Properties
▪ Image Sensor: 1/3 in. Sony DSP CCD
▪ Sensitivity: .001 lux @ f1.4
▪ Resolution: 750 TV Lines
▪ Video Out: 1.2 V p-p
▪ Lens: 3.6 mm, F1.2, Electronic Auto Iris
▪ Focus: Fixed 4 in. to infinity
▪ Format: NTSC
▪ Horizontal FOV: 72 degrees (in Seawater)
• Model RDL-401 LED Light, 3000 Lumens, Fully Dimmable
□ Connector
▪ Standard Connector: 3 Pin XSG-3-BCL
▪ Mate to Standard Connector: RMG-3-FS
▪ Standard Pin Out:
Pin 1: Power (+) 24 VDC
Pin 2: Power (-) Ground (Common)
Pin 3: 0-24 VDC Dimmer
□ Mechanical
▪ Weight: 12 oz. (0.34 kG) in air
3.7 oz. (.105 kG) in seawater
▪ Housing Material: Hard Anodized Aluminum
▪ Front Port: Acrylic
▪ Depth Rating: 1000 Meter (3,250 ft)
□ Electrical
▪ Voltage: 24 Volt DC
▪ Power Consumed: 1.16 amps @ 24 VDC
□ Light Output: >3000 Lumens (Eq. to 200 Watt Halogen)
● Model RVC-2303 Video Cable
□ Length: 330 Ft. (100 M) Standard
□ Conductors + RG-59 Coax
□ Breaking Strength: 1400 Lbs. (635 kG)
□ Outer Jacket: Orange Colored Polyurethane
● Model RVCON-3300/DC Console
□ Panel Connector for Video Cable: 8-Pin MS3108-18-08S
□ Video Recorder: SD DVR
□ Light Control: Variable Light Intensity Control 0 -100%
□ Monitor: 15 inch, HD Color w/Audio, 1080-P Resolution
□ Monitor Brightness: Sun-Readable 2000 NIT
□ Safety: Low Voltage to Diver
□ Connections: All Beautifully Laid-Out for quick access
□ Enclosure: Weather Resistant Pelican Case
□ Size: W 18.2 in. (462 mm) x H 6.7 in. (170 mm) x D 13.9 in. (353 mm)
□ Weight: 21 Lbs. (9,53 kG)
□ Power: 110-240 VAC 50/60 Hz, or 24 VDC
● Options:
□ Stainless Steel Color Camera RDC-325/SS
□ High Intensity LED Light RDL-550XBR (5850 Lumens)
□ Video Typewriter
□ Customer Requested Connectors
□ Customer Requested Video Cable Length
