RDL-400-LED
Brand:
ROVSCO
Product Code:
RDL-400-LED
Availability:
Usually Ships in 1 Week
3-Pin LED Light , 24 Volts, Equivalent to 270 Watt Halogen, Fully Dimmable
'PLUG-N-PLAY Replacement'
Light Connector: 3-Pin
Mating Connector: RMG-3-FS
Pin 1: +24 Volt DC
Pin 2: (-) Ground Common
Pin 3: 0-24 Volt Dimmer
Light:
LED
Brightness 3800 Lumens
Color Temperature: 3000K
Options:
• Customer Requested Connector or Pin-Out

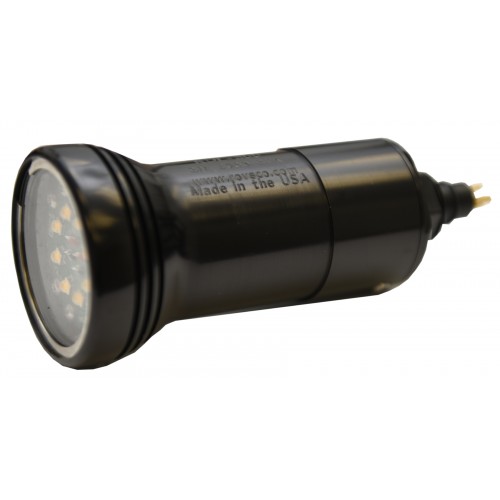

Rovsco offers a finest and most Reliable range of underwater LED lights. The RDL-400 LED is a 3-pin underwater LED light that works at both 24 volts. The housing is made of Hard Anodized Aluminum.
Benefits of LED Lighting:
• Highly Shock and Vibration Resistant
• No Fragile Filaments
• Average Lifetime >50,000 Hours
• Enormous 'in-service' cost saving
'Rovsco Offers Brighter Lights'
3-Pin Connector:
XSG-3-BCL
Mating Cable Connector:
RMG-3-FS
Pin Connections:
Pin 1: (+) 24 VDC,
Pin 2: (-) Common
Pin 3: Dimmer 0-24 VDC
Options:
Other Connectors and Pin Configurations Available on Request
Light:
LED
Brightness: 3800 Lumens
Color Temperature: 3000K
Mechanical:
Housing Material: Hard Anodized Aluminum
Front Glass: Acrylic
Depth Rating: 5000 fsw (1500 meter)
Length: 4.33 inch (110 mm) exc. connector
Diameter: Main Body 1.70 inch (43 mm)
Weight in air: 12 oz. (0.34 kG)
Weight in Seawater: 4.8 oz (0.14 kG)
Electrical:
Voltage 24 VDC
Power 30 Watts, 1.28 amps @ 24 VDC
Application:
• Commercial Divers
• ROVs
