RZC-1-1000

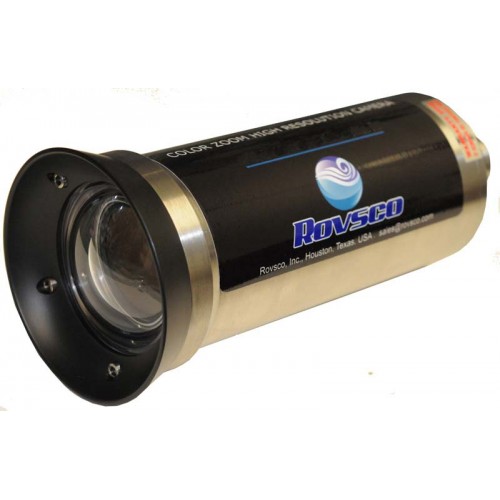

Rovsco RZC-1-1000, Zoom Color Camera, 1000 Meter Depth Rated,
Standard Connector:
XSK-5-BCL
Options:
• PAL Video
• Customer Requested Connectors
The Rovsco Line of Underwater Video Systems offer a complete range of highest quality underwater video cameras. They are built to withstand the harsh undersea environment and provide a flawless service for many years.
The Rovsco RZC-1-1000 Zoom Camera is based on latest Sony CCD Technology and is packaged in Hard Anodized Aluminum housing. It’s rated to operate at 1000 meter ocean depth.
Features:
• 18:1 Optical Zoom, 4:1 Digital Zoom
• 470 Lines of Resolution
• 1 Lux faceplate Sensitivity
• Hard Anodized Aluminum Housing
• Water corrected View Port
• Wide Angle
• Remote Precise Focus
• 11-30 VDC
Applications:
• Work-Class ROVs
• AUVs
• Subsea Drilling & Operations
• Subsea Surveillance
• Mechanical
□ Housing Hard Anodized Aluminum
□ Front Optical Port Acrylic (Seawater Corrected)
□ Size Length: 8.0 inch (Excluding connector)
Diameter: Main Body 3.1 inch
□ Weight in air 5.64 lbs.(2.56kG)
□ Weight in Seawater 1.65 lbs. (0.75 kG)
• Electronics
□ Image Device 1.4" Exview HAD CCD Sensor (768 H x 494 V)
□ Resolution 470 TV Lines (minimum) NTSC
□ Sensitivity 1 Lux
□ Iris Auto
□ Signal to Noise Ratio >50 db
□ Video Output 1 V P-P
□ Power 12-30 VDC, 300 ma
□ Standard Connector Burton 5506-1508*
* Other Connectors and Pin-Outs available on Request
• Optical
□ Optical Zoom 18:1 (4.1 mm - 73.8 mm focal length)
□ Digital Zoom 4X
□ FOV 55° Diagonal (in seawater)
• Environmental
□ Depth Rating 1000 Meter
