RLC-1-4000

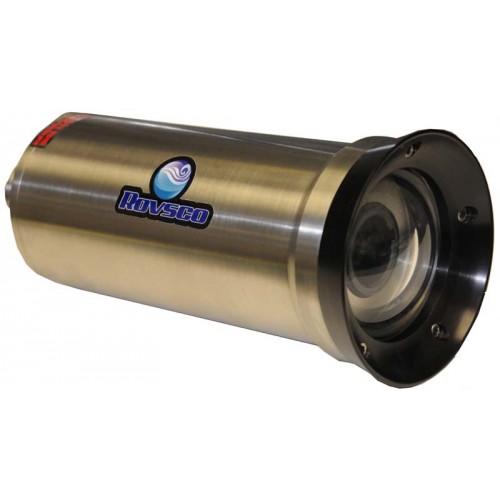

Rovsco RLC-1-4000, Low Light Monochrome Camera, .00015 Lux, 4000 meter depth
Standard Connector:
Burton or Seacon 5506-1508
Options:
• CCIR Format
• Customer Requested Connector
The Rovsco Line of Underwater Video Systems offer a complete range of highest quality underwater video cameras. They are built to withstand the harsh undersea environment and provide a flawless service for many years.
The Rovsco RLC-1-4000 is based on latest Low Light Technology and is packaged in Titanium housing. Its rated to operate at 4000 meter ocean depth.
Features:
• .00015 Lux
• 570 Lines of Resolution
• Titanium 6AL4V Housing
• Water corrected View Port
• Wide Angle
• Fixed Focus
• 12-24 VDC
Applications:
• Work-Class ROVs
• AUVs
• Subsea Surveillance
• Mechanical
□ Housing 6AL4v Titanium
□ Front Optical Port Acrylic (Seawater Corrected)
□ Size Length: 8.1 inch (Excluding connector)
Diameter: Main Body 3.3 inch
□ Weight in air 5.69 lbs.(2.58kG)
□ Weight in Seawater 2.0 lbs. (0.95 kG)
• Electronics
□ Image Device 1/2 inch Interline Transfer CCD
□ Resolution 570 TV Lines (minimum)
811 (H) x 508 (V) (EIA)
795 (H) x 596 (V) (CCIR)
□ Sensitivity .00015 Lux (Faceplate)
□ Iris Auto
□ Signal to Noise Ratio >50 db
□ Video Output 1 V P-P
□ Power 12-30 VDC, 300 ma
□ Standard Connector Burton 5506-1508*
* Other Connectors and Pin-Outs available on Request
• Optical
□ Focal Length 3.6 mm, F1.0
□ Digital Zoom 4X
□ FOV (in seawater) 82.4° (Horiz) x 65.7° (Vert), 94.6° (Diag)
• Environmental
□ Depth Rating 4000 Meter
