RVS-425-17/T/DC
Rovsco RVS-425-17/T/DC Complete 3-Diver Portable Color Video System with LED Light and 1 TB HDD DVR, 17 inch Sun-Readable 2000 NIT Monitor
Power: 110-240 VAC 50/60 Hz or 24 VDC (2x12 Volt Car Batteries)
Console 8-Pin Connector: MS3102-18-08S
● Connector for Umbilical: MS3102-18-08S with the same pin-out & connections as the Leading Brand of Underwater Video Systems and commonly used by the commercial diving industry. You can use your present or our video cables, cameras and lights without any modification.
'Rovsco offers finest and the most Reliable range of Diver Video Systems.'
Included with the System:
(3) RDC-400/P, Fixed Focus Color Camera, 750 Lines Resolution
(3) RDL-401, 3000 Lumens, Fully dimmable LED Light
(3) RDH-60, Bracket & Handle
(3) RVC-2303-150M, 150 Meter (500 Ft.) Video Cable with Connectors
(1) RVU-425-17/T/DC, 3-Diver Console C/W 17 inch Sun-Readable HD Color Monitor, 1 TB HDD Recorder, Dimmable Light Control with all Power Supplies. All Beautifully Mounted in a Weather Resistant Pelican Case.
(1) 600 Volt Grounding Cable
(1) User Manual
● Options:
□ Stainless Steel Color Camera RDC-400/SS
□ Color Camera RDC-410/P (at no additional charge)
□ High Intensity LED Light RDL-550XBR (5850 Lum
□ Customer Requested Connectors
□ Customer Requested Video Cable Length
● Model RDC-400/P Fixed Focus Color Camera
□ Mechanical
▪ Diameter: Main Body: 1.25 inch (38 mm), Front : 1.49 in. (38 mm)
▪ Length: 4.9 inch (122 mm) excluding connector
▪ Housing Material: Black Delrin
▪ Front Port: Sapphire
▪ Depth Rating: 2000 Meter (6,560 ft)
▪ Weight in Seawater: 1.75 oz. (0.05 kG)
▪ Weight in air: 5.28 oz. (0.15 kG)
□ Electrical
▪ Voltage: 12-18 Volt DC
▪ Power: 107 ma @ 12 Volt DC
□ Connector
▪ Standard Connector: MCBH4M
▪ Mate for Standard Connector: LPIL4F
□ Camera Video/Optical Properties
▪ Image Sensor: 1/3 in. Sony DSP CCD
▪ Sensitivity: .001 lux @ f1.4
▪ Resolution: 750 TV Lines
▪ Video Out: 1.2 V p-p
▪ Lens: 3.6 mm, F1.2, Electronic Auto Iris
▪ Focus: Fixed 4 in. to infinity
▪ Format: NTSC
▪ Horizontal FOV: 72 degrees (in Seawater)
● Model RDL-401 LED Light, 3000 Lumens, Fully Dimmable
□ Connector
▪ Standard Connector: 3 Pin XSG-3-BCL
▪ Mate to Standard Connector: RMG-3-FS
▪ Standard Pin Out:
Pin 1: Power (+) 24 VDC
Pin 2: Power (-) Ground (Common)
Pin 3: 0-24 VDC Dimmer
□ Mechanical
▪ Weight: 12 oz. (0.34 kG) in air
3.7 oz. (.105 kG) in seawater
▪ Housing Material: Hard Anodized Aluminum
▪ Front Port: Acrylic
▪ Depth Rating: 1000 Meter (3,250 ft)
□ Electrical
▪ Voltage: 24 Volt DC
▪ Power Consumed: 1.16 amps @ 24 VDC
□ Light Output: >3000 Lumens (Eq. to 200 Watt Halogen)
● Model RVC-2303 Video Cable
□ Length: 500 Ft. (150 M) Standard
□ Conductors + RG-59 Coax
□ Breaking Strength: 1400 Lbs. (635 kG)
□ Outer Jacket: Orange Colored Polyurethane

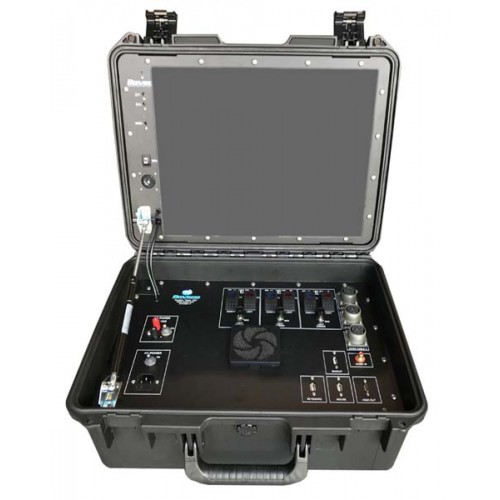

● Model RVU-425-17/T/DC
□ Panel Connector for Video Cable: 8-Pin MS3102-18-08S
□ Video Recorder: 1 TB HDD DVR
□ Light Control: Variable Light Intensity Control 0 -100%
□ Monitor: 17 inch, HD Color w/Audio, 1080-P Resolution
□ Monitor Brightness: Sun-Readable 2000 NIT
□ Safety: Low Voltage to Diver
□ Connections: All Beautifully Laid-Out for quick access
□ Enclosure: Weather Resistant Pelican Case
□ Size: W 19 in. (483 mm) x H 7.25 in. (184 mm) x D 15.5 in. (394 mm)
□ Weight: 26 Lbs. (11.75 kG)
□ Power: 110-240 VAC 50/60 Hz, or 24 Volt DC (2x12 Volt Car Batteries)
● Options:
□ Stainless Steel Color Camera RDC-400/SS
□ Color Camera RDC-410/P (at no additional charge)
□ High Intensity LED Light RDL-550XBR (5850 Lum
□ Customer Requested Connectors
□ Customer Requested Video Cable Length
