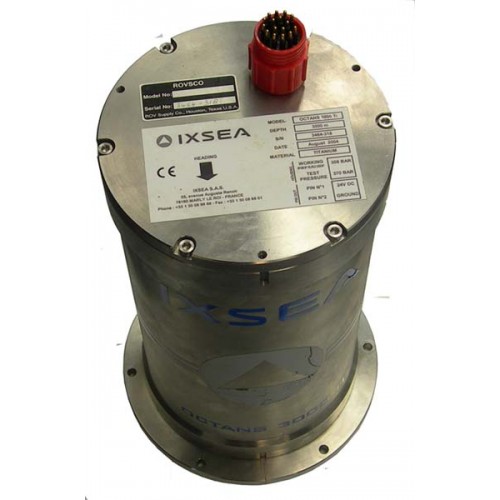

XSEA 3000 Meter depth Rated Subsea Gyro (FOG)
Model # 3000Ti
Industry Standard Gyro for Rent
Connector is Subconn 16 pin..with Modification to work with ROV Multiplex System
Specification:
Weight in Seawater 5 kG (11 lbs)
Weight in air 12 kG (26.5 lbs)
Size: Base Plate diameter 209 mm (8.228 inch)
Main Body diameter 173 mm (6.81 inch)
Height 322 mm (12.68 inch)
Power Requirement 20-30 VDC (24 V Nom)
Power Consumption 12 Watts
Settling Time <1 min.
Settling Time at sea <3 min.
Repeatability +/- 0.025 deg Secant Latitude
Resolution 0.01 deg.
SUPPLIED WITH A RUGGED CASE
