RDC-400/P/E

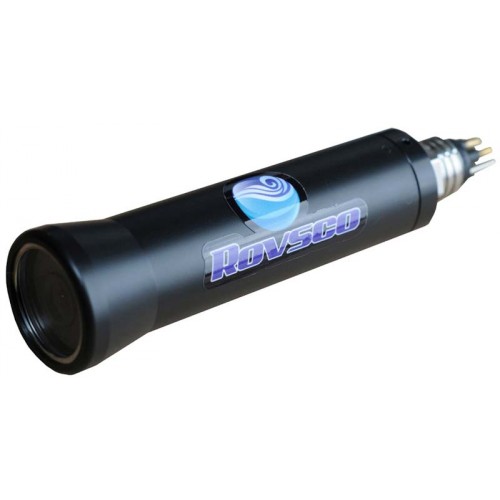

Rovsco RDC-400/P/E (PAL), Fixed Focus Color Camera, Black Delrin Housing, Wide Angle, Compact Size
The Rovsco Line of Underwater Video systems offer a complete range of highest quality underwater video cameras. They are built to withstand the harsh undersea environment and provide a flawless service for many years.
The Rovsco RDC-400/P is based on latest Sony CCD Technology and is packaged in Black Delrin housing with double O-Ring seals.
Standard Connector 4-Pin MCBH4M
Mating Connector LPIL4F
Locking Sleeve MCDLSF
Main Body Diameter: 1.30 inch (33 mm)
Front Diameter: 1.50 inch (38 mm)
Length: 5.0 inch (126 mm)
Housing: Black Delrin
Standard View Port: Scratch Proof Sapphire
Options:
• Stainless Steel Housing
• Customer Requested Connector
Connector Interface:
Standard Connector 4-Pin MCBH4M
Mating Connector LPIL4F
Locking Sleeve MCDLSF
Specification:
Mechanical
Main Body Diameter: 1.30 inch (33 mm)
Front Diameter: 1.50 inch (38 mm)
Length: 5.0 inch (126 mm)
Housing: Black Delrin
Front View Port: Sapphire
Weight in air: 5.3 oz (0.15 kG)
Weight in seawater: 1.76 oz (.05 kG)
Depth Rating: 2000 meter (6,560 ft)
Electrical & Optical
Image Sensor: 1/3"Sony CCD
Sensitivity: .001 Lux at f1.4
Resolution: >750 TV Lines
Pixels: 1020 (H) x 596 (V)
Focus: Fixed Focus, 4 inch to infinity
Lens: 3.6 mm, F1.2, E-Iris
FOV underwater: 72 degrees
